Dwide ceiling

Installation

Ceiling mounted or pendant cord for direct luminaires. For installation in pendant cords, a suspension cord is required, see accessory 91008.

Connection

Three Ø 13 mm cable entries fitted with blanking grommets on the top of the luminaire, see dimension diagram. Knockouts at each end for surface mounted mains cable. 5-way snap-in terminal block at one end of the luminaire, 1-phase through-wiring possible.

Design

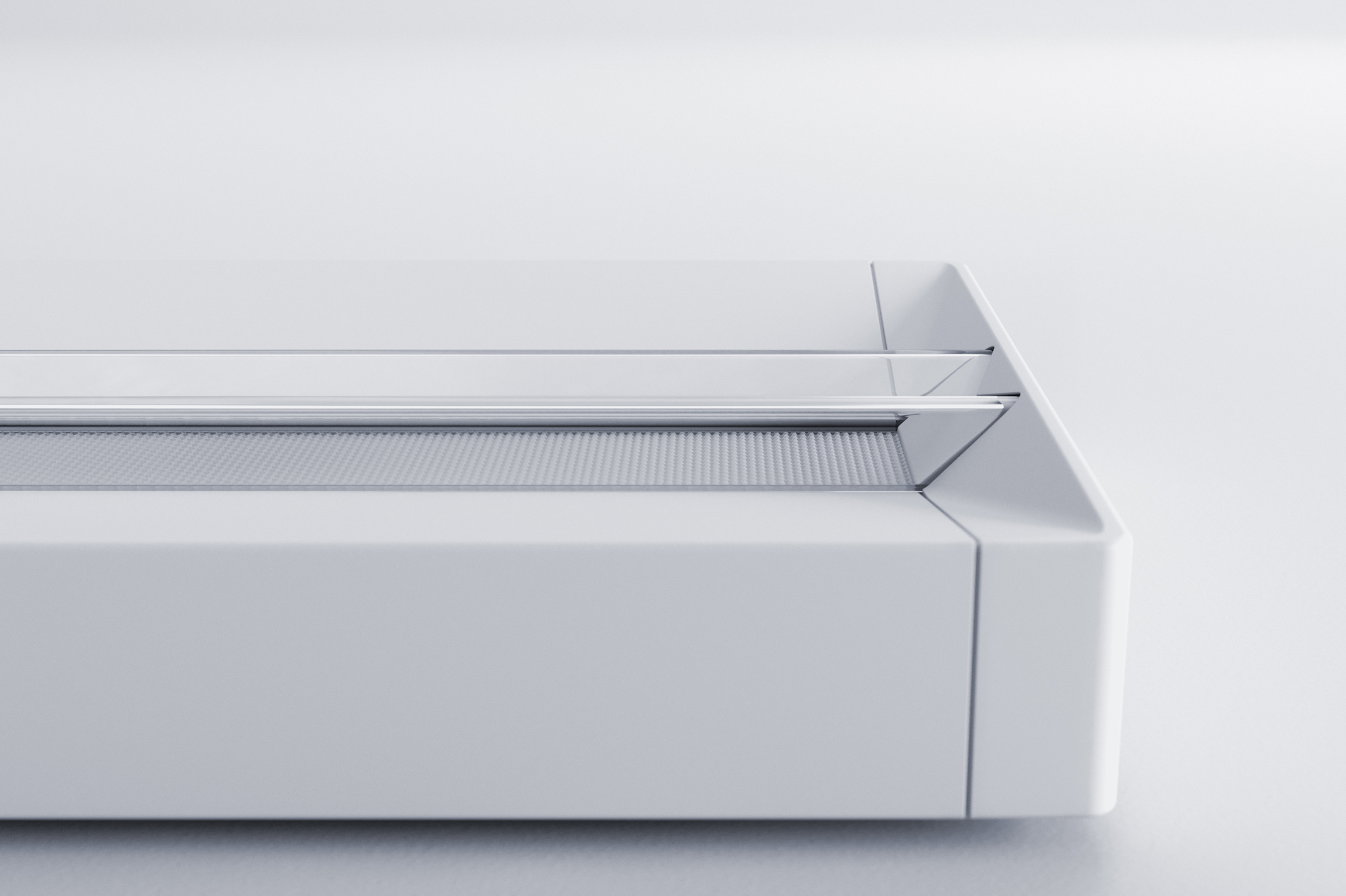

Metal luminaire body with die-cast metal ends, white (RAL 9016) finish. For indirect light, the top is covered by an opal diffuser, which also works as a dust cover.

Louvre

Delta – Microprism louvre in acrylic (PMMA) with a thin opal diffuser in acrylic (PMMA) inside. Light divider in acrylic (PMMA).

Light distribution

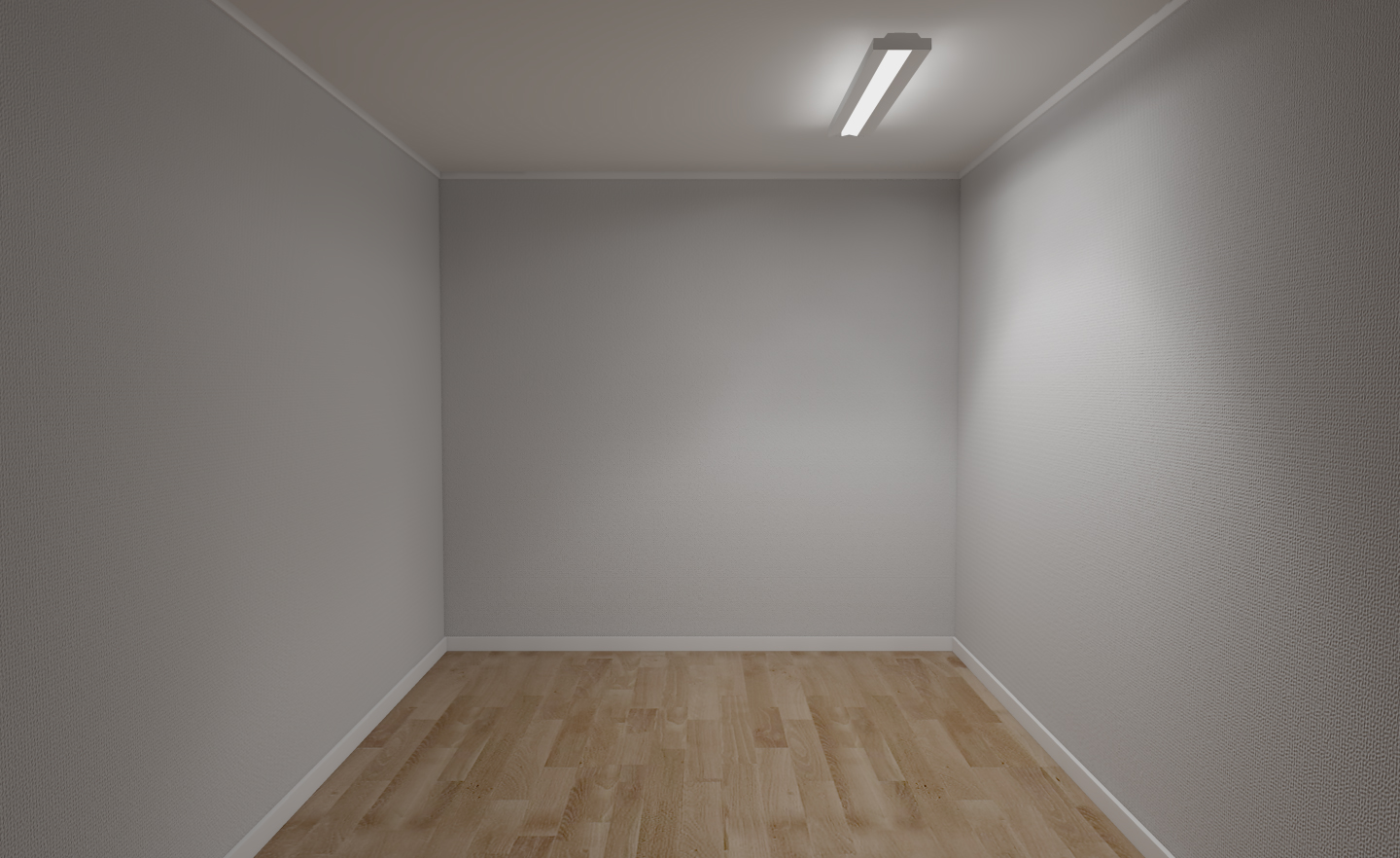

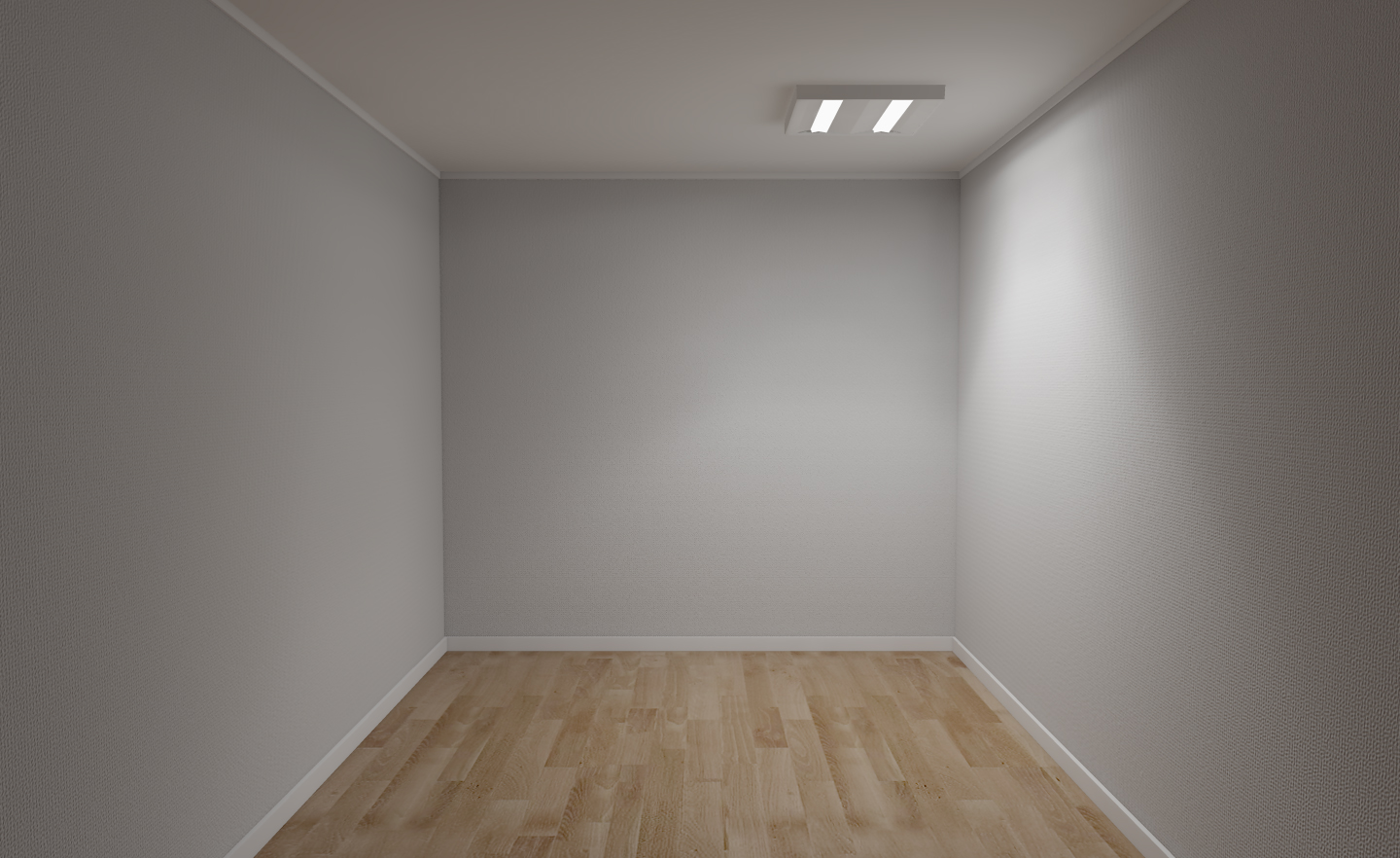

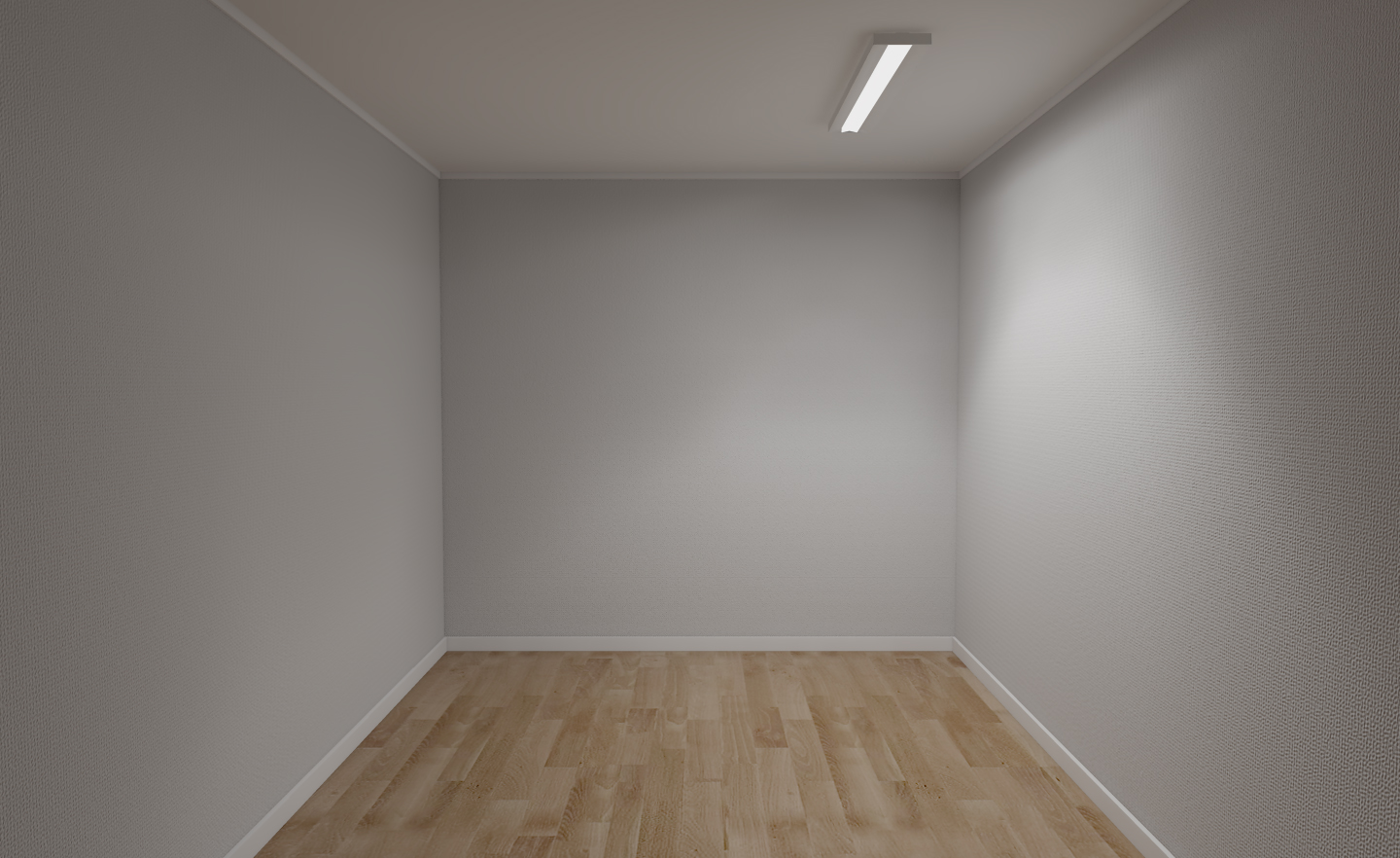

Direct 100 or Direct/Indirect 90/10.

Dimming

DALI/phase-pulse control as standard. Luminaire with DALI/phase pulse control and CLO (Constant Light Output) as standard.

e-Sense Active – PIR sensor with presence and daylight control via DALI.
e-Sense BrightSwitch – PIR sensor med lux threshold. Presence control On/Off. Absence dimming high/low available upon request.
Organic Response – PIR sensor with presence and daylight control. All luminaires act as master/slave with IR communication.
e-Sense Flex – Integrated sensors with ambient light sensor. Presence/absense control high/low/off. Wireless communication via Bluetooth mesh, equipped with microwave sensor.

Accessories

Fittings and additional components sold separately.

Designed by

Yellon.

Miscellaneous

CRI 90 alt CLO L100 100 000h available upon request. CLO (Constant Light Output) means that the luminaire provides the same amount of light for the duration of its specified burning time.
