Notor 65 Dynamic Delta
37331 Notor 37331
Born out of research on Double Dynamic Lighting, Notor 65 Dynamic has a clear focus on lighting for humans. With diffuse direct/indirect light combined with directional light from a spotlight mounted in the side, dynamic and natural-like lighting is created. Delta louvre shutters provide high efficiency and optimal light comfort and this, combined with the anti-glare spotlight, makes it possible to manage UGR16 and meet the maximum average luminance requirement at workplaces with monitors 3000cd/m2 at 65-90 degrees. Can be a good luminaire in your next WELL project.
Installation
Single installation in wire suspension. For wire suspension installation, wire brackets are required for flexible c/c; ordered separately, see accessories.
Connection
The luminaire is equipped with an insertion hole on the top for wiring.
Design
Body lacquered in white (RAL 9016 G40) or black (RAL 9005 G30). Indirect light is covered by an opal film that generates a broad beam and serves as a dust cover. End caps are included in the luminaire.
Louvre
Delta – micro-prism louvre shutters in acrylic (PMMA).
Light distribution

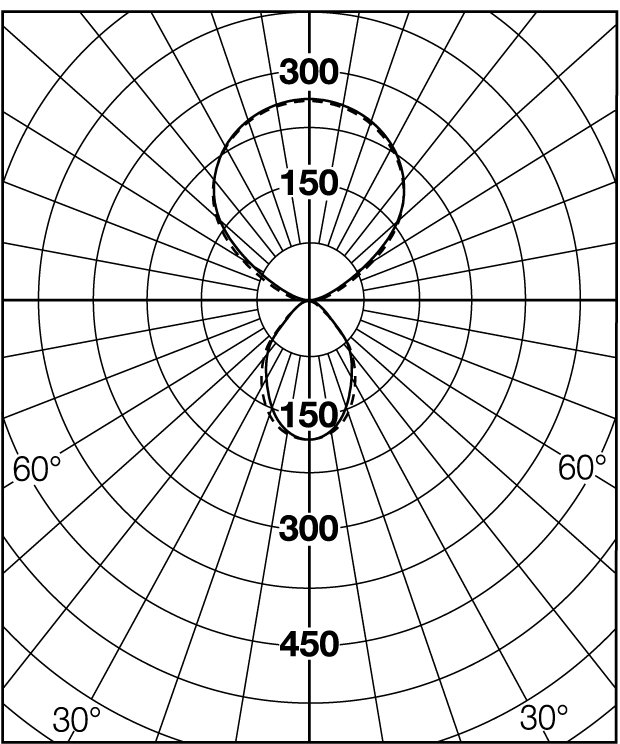

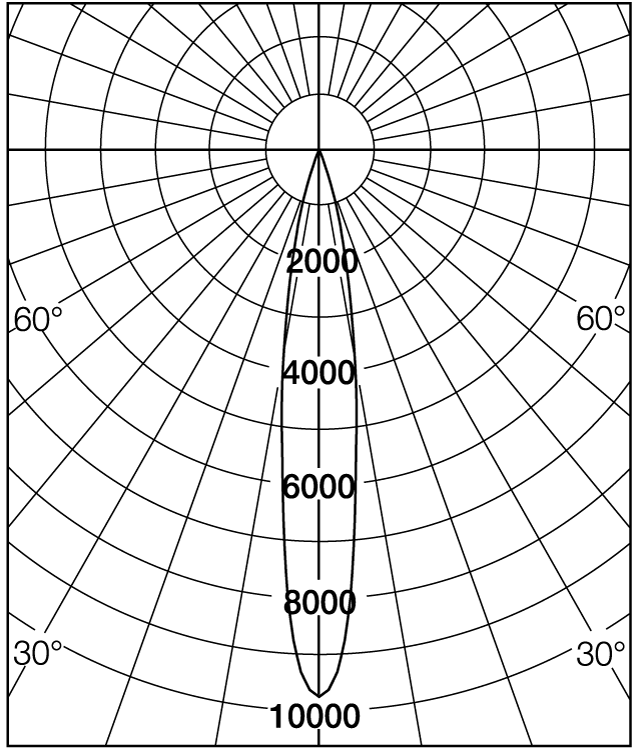

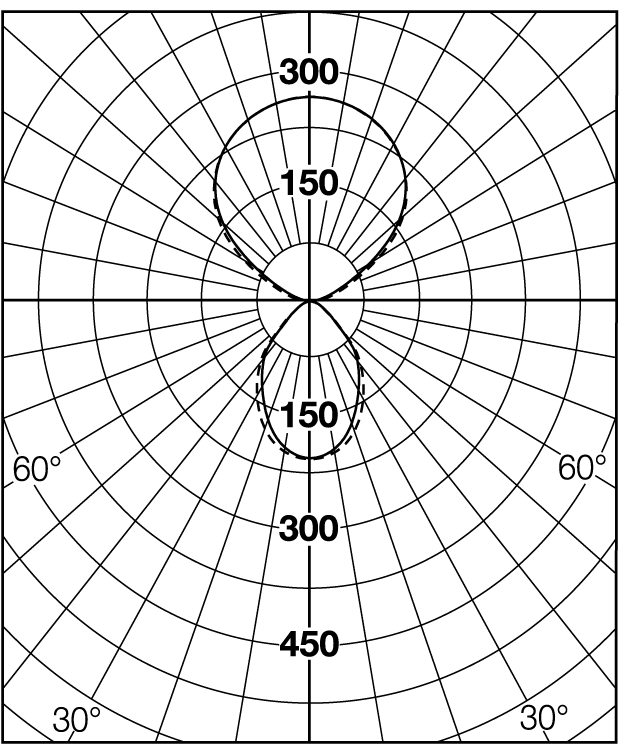

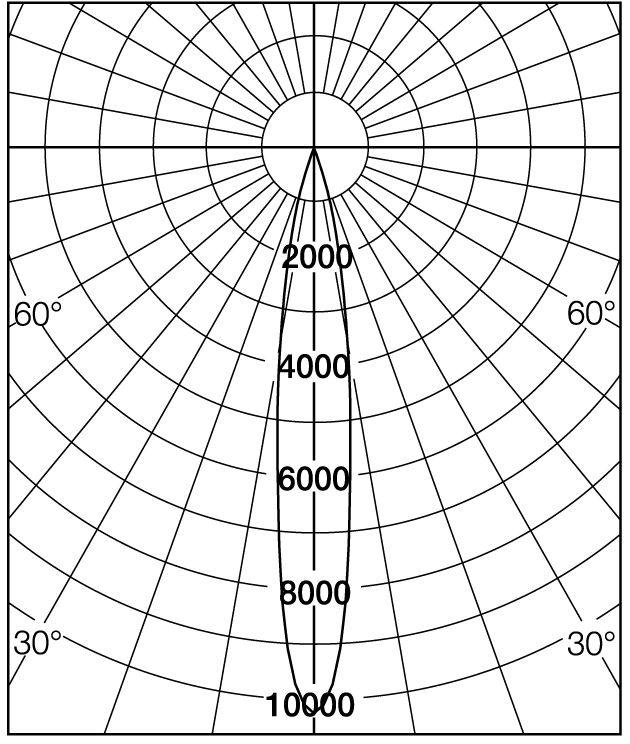

Direct/indirect 30/70, narrow-beam spotlight.
Dimming
CLO (Constant Light Output) and DALI as standard. Phase pulse control is available with push dimming.
Organic Response – PIR sensor with presence and daylight control.
All luminaires function as master/slave with IR communication.
Accessories
Installation fittings and additional components sold separately.
Miscellaneous
CLO (Constant Light Output) entails that the luminaire provides the same amount of light for the duration of its specified burn time.
Diodes are touch protected.
Ra (CRI) 90 on request.
Notor
Fagerhult’s classic interior luminaire Notor is available in several versions for suspended, surface mounted or recessed installation. Notor is an obvious choice in circumstances when there is a desire to create long, unbroken...
More about the family NotorOther products
Document
Specification
Loading...
Accessories Notor G2 Ripustettava suora/epäsuora Lamell
Filter
| Name | Description | Art.no. | |
|---|---|---|---|
| Name | Description | Art.no. | |
|
Support rail (cat. no./pair) | L=600/650, section: 15, max. load: 75N/pair | 90015 |
|
|
Support rail (cat. no./pair) | L=600/625, section: 25, max. load: 75N/pair | 94067 |
|
Wire suspension for support rails L: 1,5m | Wire suspension for support rails 90015, 90016, 90017, 94052, 94067, 94068 | 91426 |
|
|
Support rail (cat. no./pair) | L=200/1250, section: 15, max. load: 120/30N/pair | 90016 |
|
|
Support rail (cat. no./pair) | L=1200/1250, section: 25, max. load: 120/30N/pair | 94068 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, transparent mains cable (96382+96390) | 95355 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96388) | 95356 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96376) | 95364 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96379) | 95365 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large, white mains cable (96370+96374) | 95362 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, for T-bars 25 mm, transparent mains cable (96385+96391) | 95353 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96379) | 95361 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – small + large, transparent mains cable (96370+96378) | 95363 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96376) | 95360 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, transparent mains cable (96371+96378) | 95359 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Square ceiling cups – large, white mains cable (96371+96374) | 95358 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96391) | 95357 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, for T-bars 25 mm, white mains cable (96385+96388) | 95352 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, white mains cable (96383+96386) | 95350 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – large, transparent mains cable (96383+96390) | 95351 |
|
Wire suspension for single installation, 3x0.75 mm² L: 1,4m | Round ceiling cups – small + large, white mains cable (96382+96386) | 95354 |
|
IR dongle for Organic Response | IR dongle for Organic Response equipped luminaire. | 86279 |
|
Wire bracket incl. friction locks | Wire bracket/pair | 92683 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, white mains cable (96384+96389) | 95372 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, transparent mains cable (96372+96381) | 95381 |
|
Wire bracket incl. friction locks | Wire bracket/pair | 92682 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large for T-bars 25 mm, white mains cable (96372+96377) | 95380 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large, transparent mains cable (96370+96380) | 95379 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – small + large, white mains cable (96370+96375) | 95378 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, transparent mains cable (96373+96381) | 95377 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, for T-bars 25 mm, white mains cable (96373+96377) | 95376 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, transparent mains cable (96371+96380) | 95375 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Square ceiling cups – large, white mains cable (96371+96375) | 95374 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – large, for T-bars 25 mm, white mains cable (96385+96389) | 95368 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – small + large, for T-bars 25 mm, transparent mains cable (96384+96393) | 95373 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – small + large, white mains cable (96382+96387) | 95370 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – large, transparent mains cable (96383+96392) | 95367 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – small + large, transparent mains cable (96382+96392) | 95371 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – large, white mains cable (96383+96387) | 95366 |
|
|
Wire suspension for single installation, 5x0.75 mm² L: 1,4m | Round ceiling cups – large, for T-bars 25 mm, transparent mains cable (96385+96393) | 95369 |
|
Ceiling bracket in chrome with wire | Wire suspension with ceiling bracket in chrome, L=1.5 m/pair | 91696 |
|
Cutters | Cutters, each | 94248 |
|
Organic Response I/O box | I/O box with potential-free 16A relay for controlling external units. | 86413 |
|
Organic Response IoT Gateway | Gateway for connection to Organic Response Portal. Incl. power adapter and wall bracket. Controls a maximum of 150 sensors. | 86296 |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 2 function push button panel, white | 86416 |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 4 function push button panel, white | 86417 |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 4 function push button panel, labeled, white | 86437 |
|
Organic Response EnOcean Wireless Push button panel | EnOcean 2 function push button panel, labeled, white | 86436 |
|
|
Organic Response I/O box | I/O box with potential-free 8A relay for controlling external units. | 86433 |
|
Organic Response G3 Circadian Rhythm Box | External box and sensor that enables automatic colour temperature shifting during the day for Tunable White luminaires equipped with Organic Response. | 86489 |
|
Organic Response Sky Light sensor | The Organic Response Sky Light sensor is used to add full Double Dynamic Lighting to DDL Ready luminaries through the Organic Response system. | 86503 |
