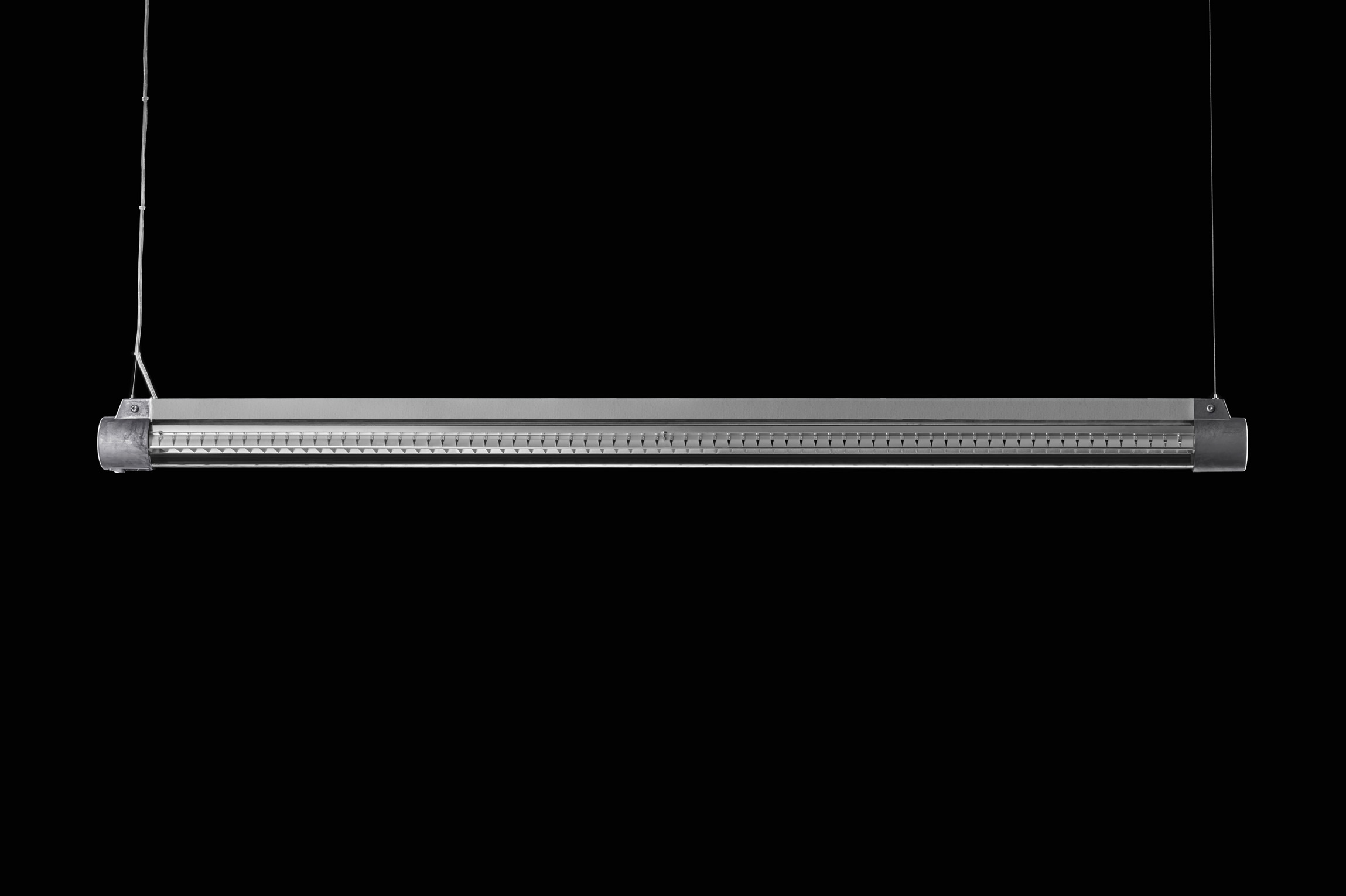

A pendant workplace luminaire that produces direct/indirect light. The Beta Opti louvre ensures high efficiency and optimal light comfort.

Installation

Wire pendant. Luminaire bracket with friction lock included in the luminaire.

Connection

For connection with 230 V built-in LED driver. Supplied with 1.5 m transparent cable.

Design

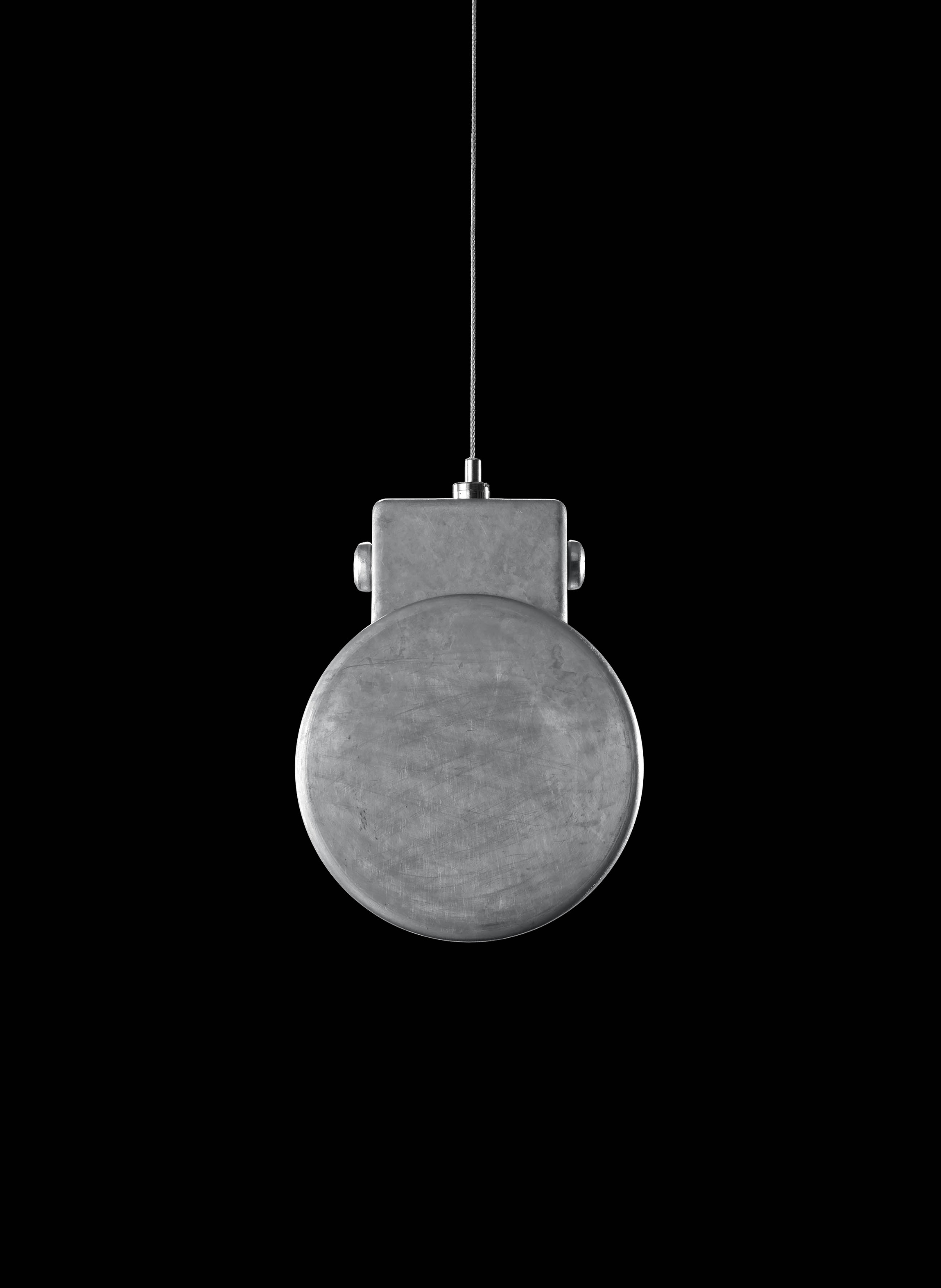

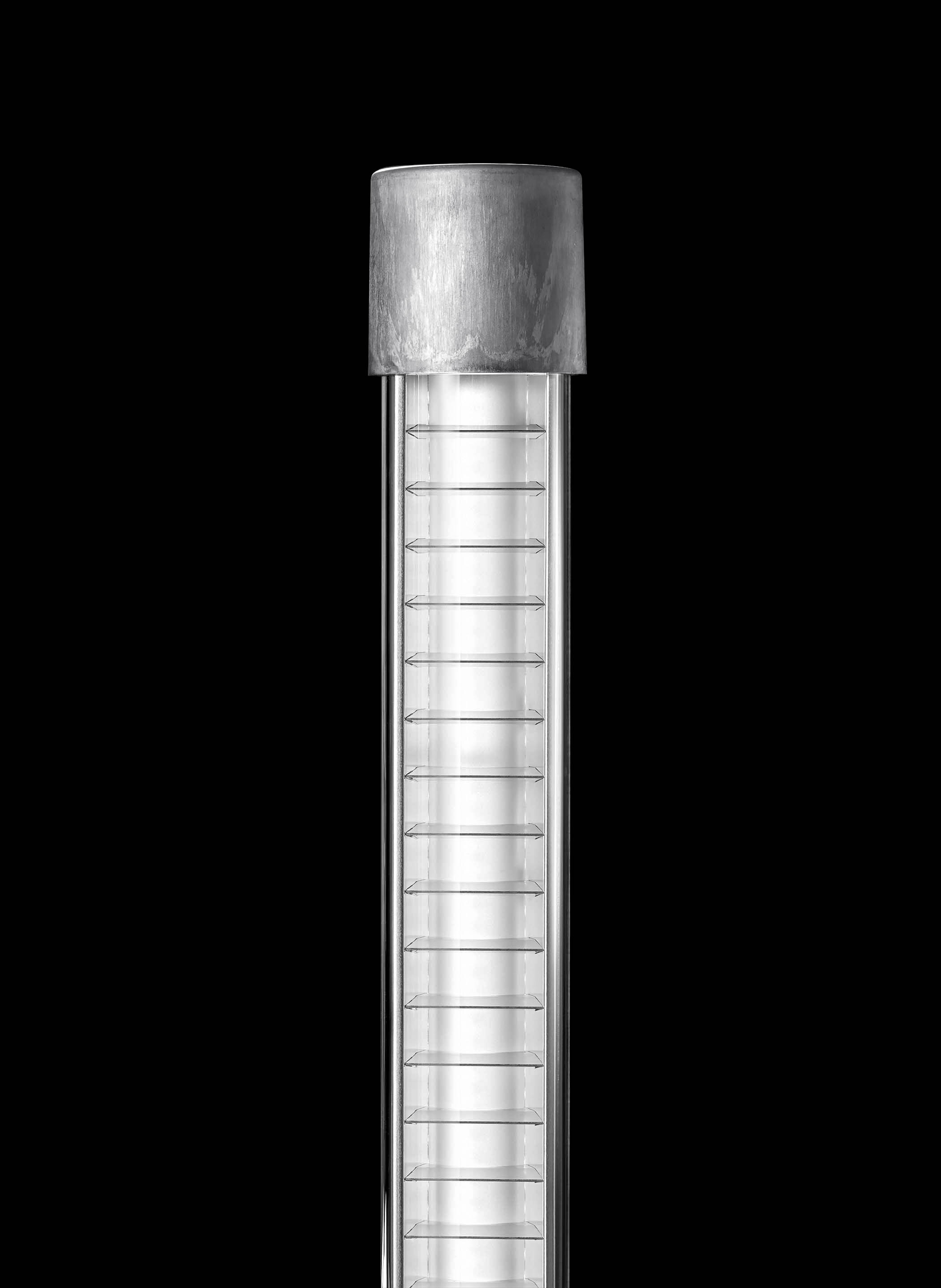

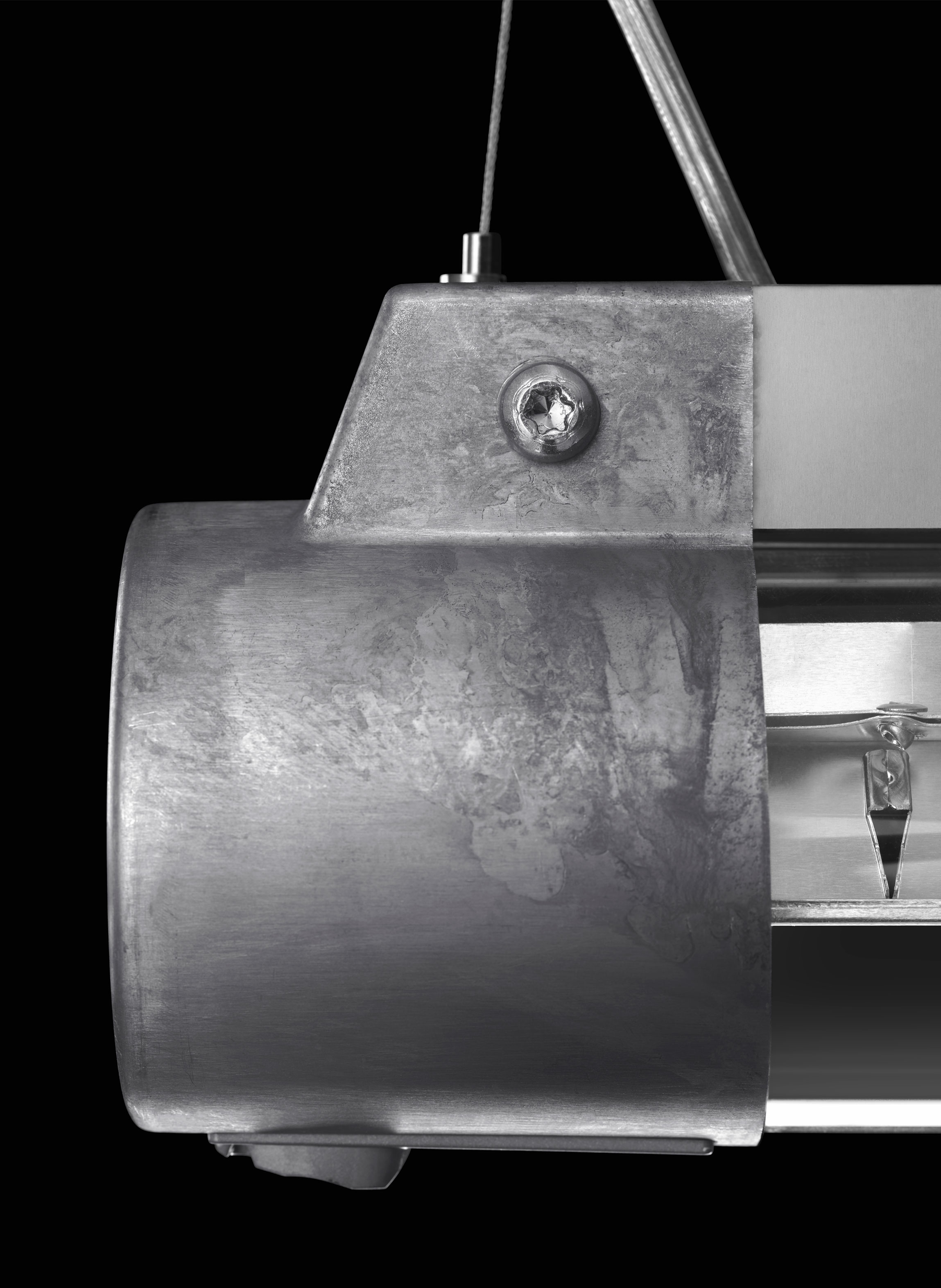

Luminaire body of untreated steel sheet and end caps in untreated aluminum. Transparent tube in acrylic.

Louvre

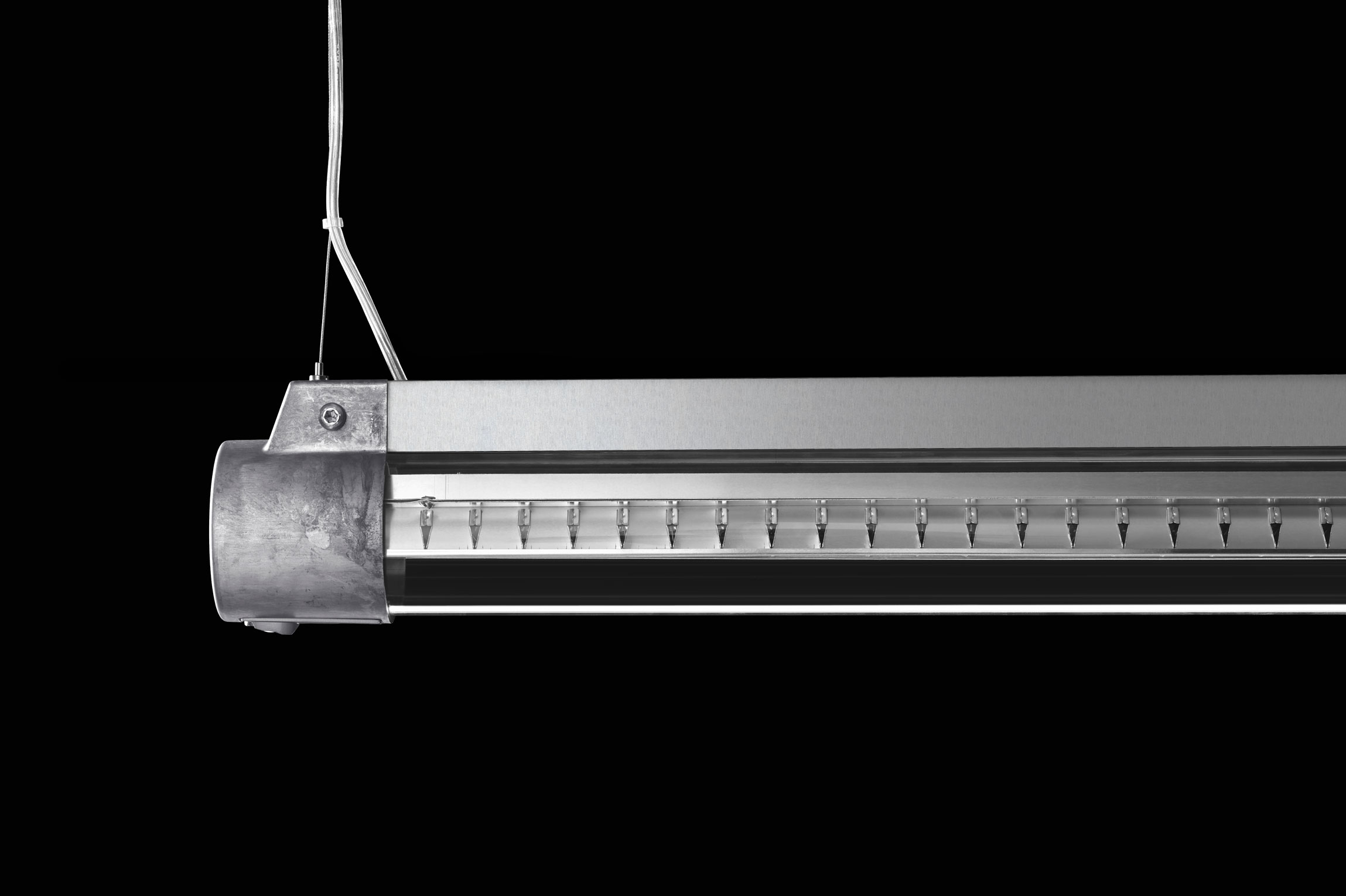

Beta Opti – double parabolic reflector louvre with satin matt metallised aluminium side and cross-blades with an integrated opal film that minimises the risk of uncomfortable glare from the diodes

Light distribution

Direct/indirect 93/7.

Dimming

DALI/phase-pulse control as standard. Luminaire with DALI/phase pulse control and CLO (Constant Light Output) as standard.
Organic Response – PIR sensor with presence and daylight control. All luminaires act as master/slave with IR communication.

Accessories

Fittings and additional components sold separately.

Miscellaneous

CRI 90 alt CLO L100 100 000h available upon request. CLO (Constant Light Output) means that the luminaire provides the same amount of light for the duration of its specified burn-time.

Media

Organic Response – How it works

Pondero

A flirt with the shape of the old fluorescent lamp, but in a modern and urban shape. That is the Pondero; a pendant luminaire in a body of untreated steel with aluminium gables. Already a contemporary classic from Fagerhult. The...

More about the family Pondero

Document

Material data declaration

Manual Organic Response

Instruction for use

Max

FBX

DWG

3Ds

Revit

Specification

Loading...

Filter

Name Description Art.no.
Name Description Art.no.
Wire suspension for support rails L: 1,5m Wire suspension for support rails 90015, 90016, 90017, 94052, 94067, 94068 91426
IR dongle for Organic Response IR dongle for Organic Response equipped luminaire. 86279
Ceiling bracket in chrome with wire Wire suspension with ceiling bracket in chrome, L=1.5 m/pair 91696
Ceiling cup Large round ceiling cup without wire and mains cable/each 96394
Ceiling cup Large round ceiling cup without wire and mains cable for T-bars 25 mm/each 96395
Ceiling cup Large square ceiling cup without wire and mains cable/each 96398
Ceiling cup Large square ceiling cup without wire and mains cable for T-bars 25 mm/each 96399
Wire Wire with ball, 1.5 m/pair 91425
Organic Response I/O box I/O box with potential-free 16A relay for controlling external units. 86413
Organic Response IoT Gateway Gateway for connection to Organic Response Portal. Incl. power adapter and wall bracket. Controls a maximum of 150 sensors. 86296
Ceiling cup Small round ceiling cup/each without wire. 96396
Ceiling cup Small round ceiling cup for T-bars 25 mm/each without wire. 96397
Ceiling cup Small square ceiling cup/each without wire. 96400
Ceiling cup Small square ceiling cup for T-bars 25 mm/each without wire. 96401
Organic Response EnOcean Wireless Push button panel EnOcean 2 function push button panel, white 86416
Organic Response EnOcean Wireless Push button panel EnOcean 4 function push button panel, white 86417
Organic Response EnOcean Wireless Push button panel EnOcean 4 function push button panel, labeled, white 86437
Organic Response EnOcean Wireless Push button panel EnOcean 2 function push button panel, labeled, white 86436
Organic Response I/O box I/O box with potential-free 8A relay for controlling external units. 86433
